LA 202A Dual 10" Active Array Line Module
ACTIVE LINE ARRAY MODULE
1400 Watt Peak power - 700 Watt RMS

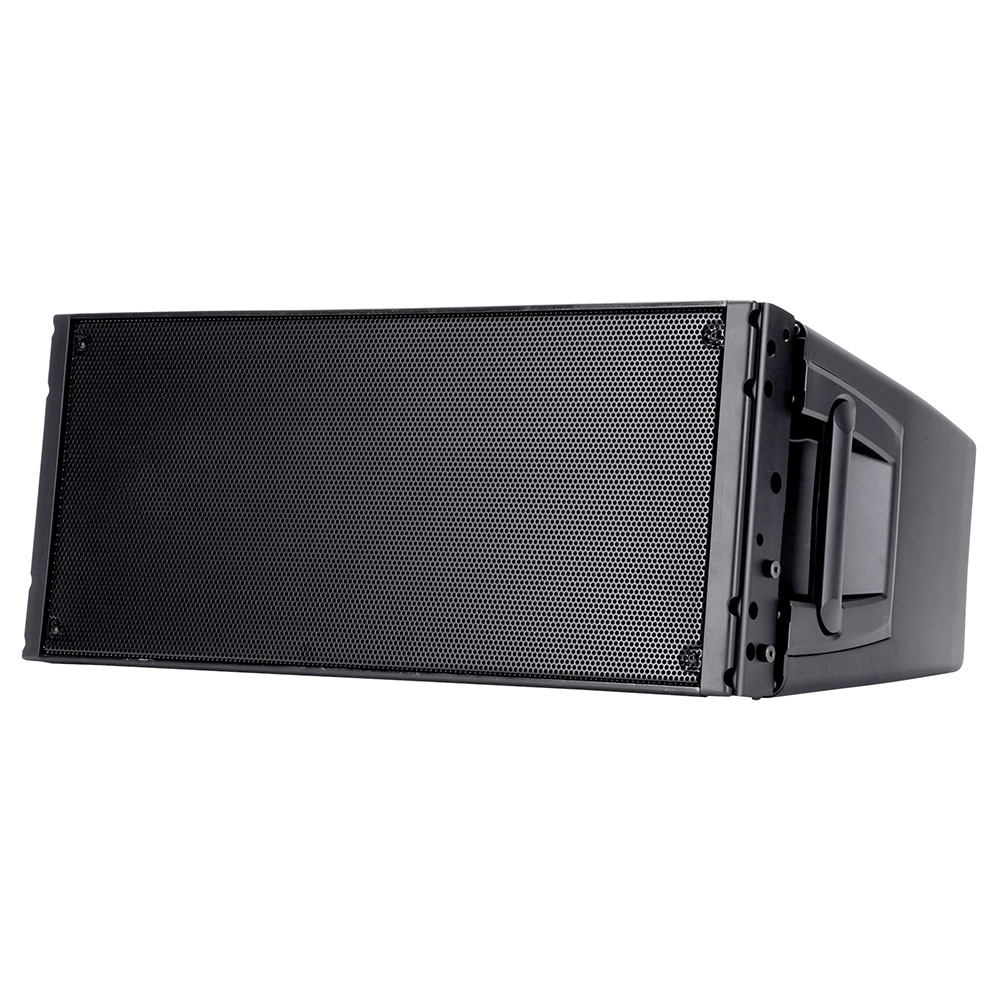

2 x 10" Woofers
55 Hz 20 kHz frequency response

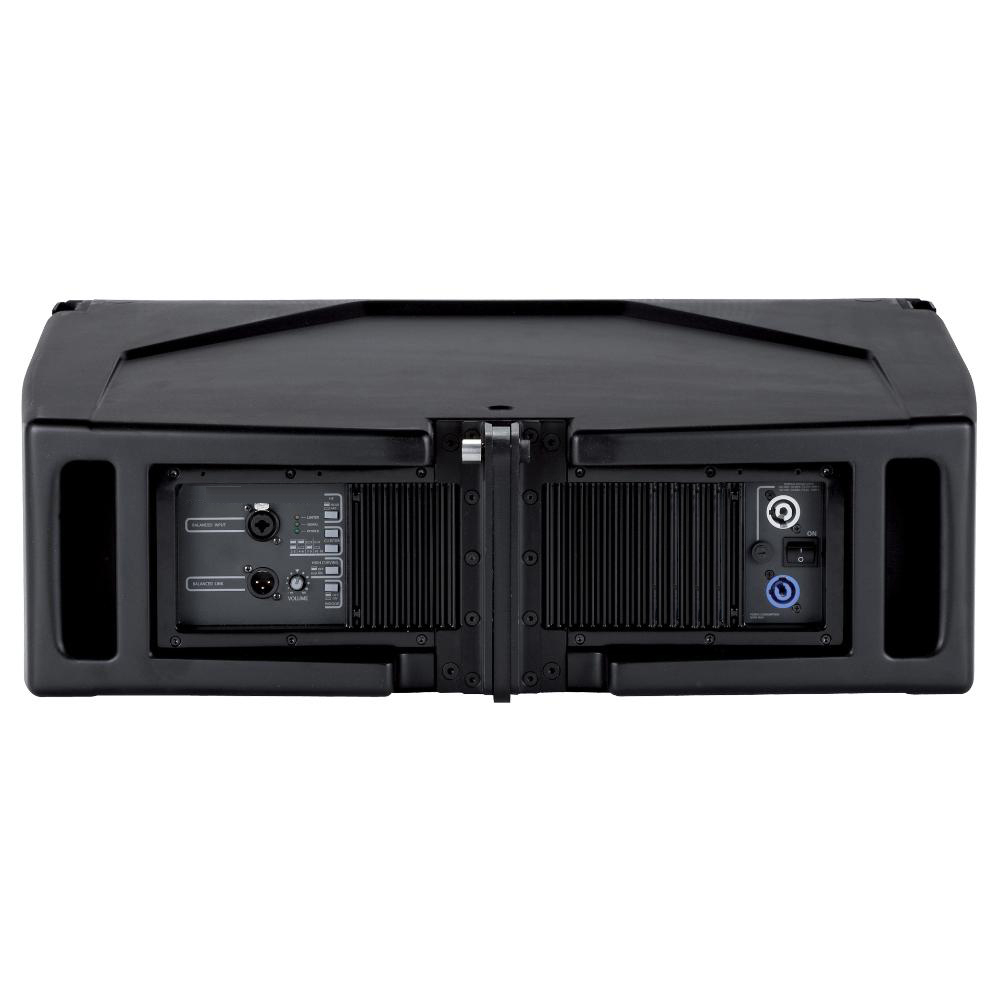

DSP controlled Input section with selectable presets

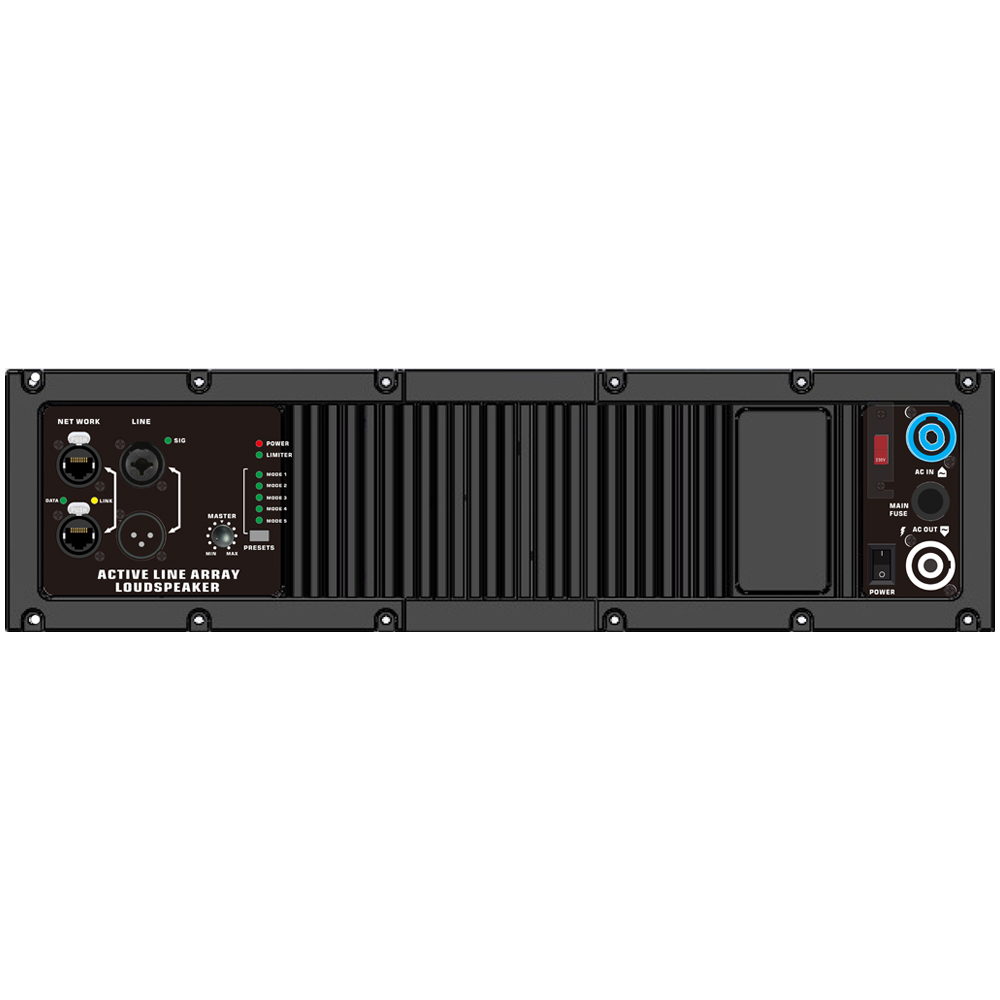

485 NET WORK connector

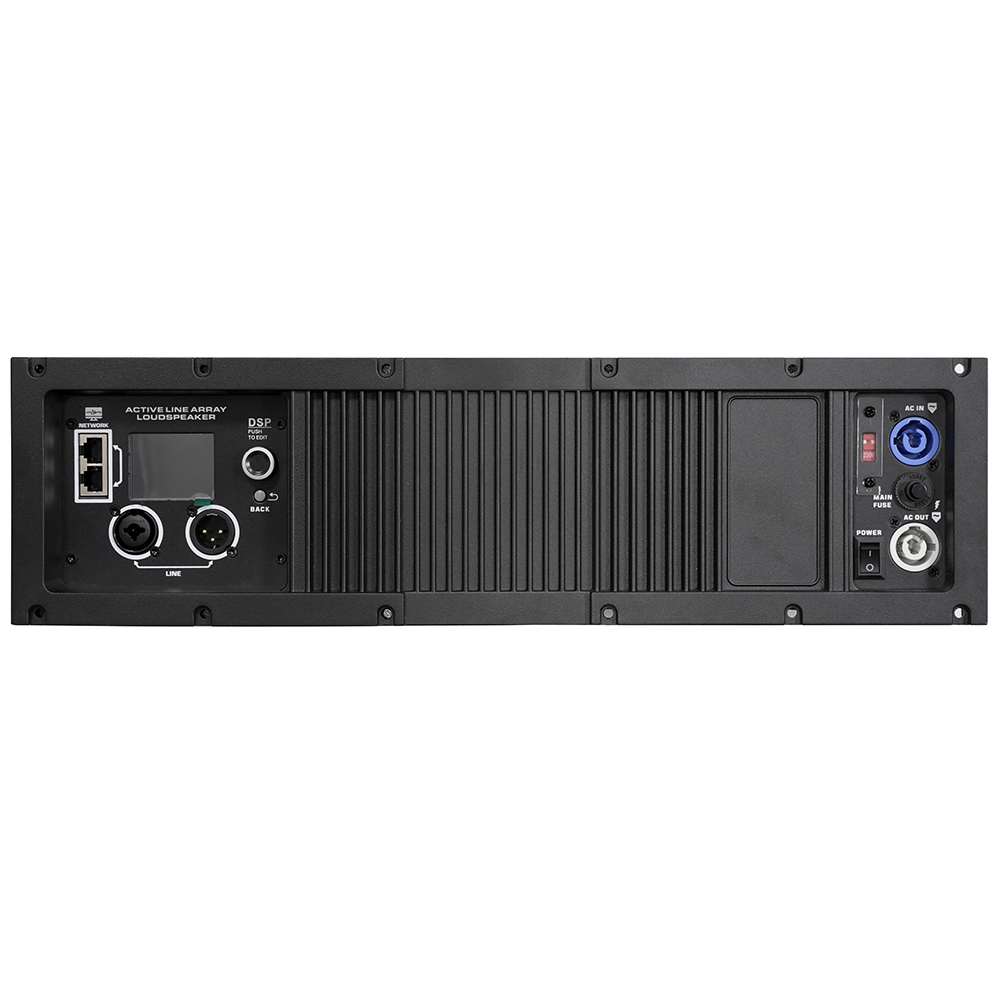

LCD display operation

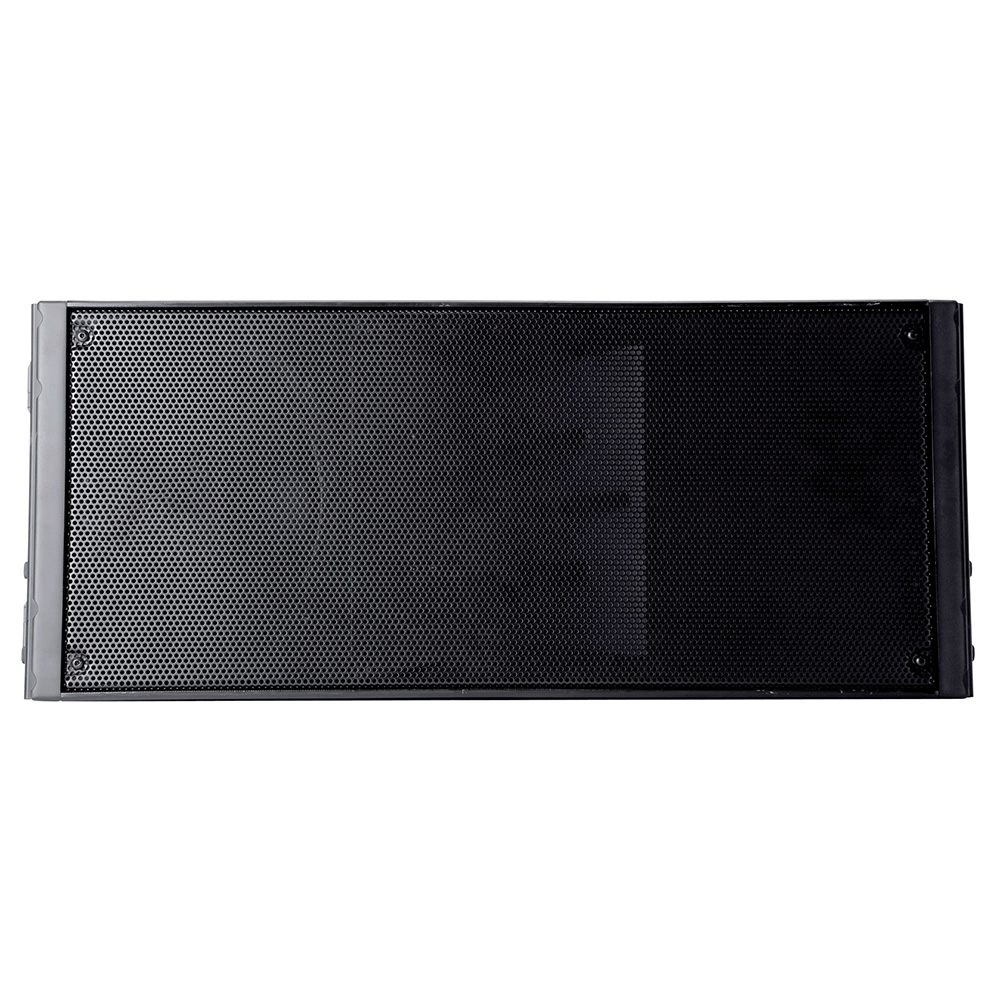

Plastic Cabinet
Sutiable for parties, DJ gigs, weddings, meetings, speeches,
churches,gymnastics, conferences, home theaters, etc.
Active 2-Way Bi-amplifier Line Array
Class D 2-Channel amplifier with 1400 W Peak/700W RMS
(HF 200W+ LF 500W)
Equipment with:
High: 1 pc 2"Compression driver(3'' V.C.)
Low: 2 pcs 10'' Woofers(2.5'' V.C.)
Max.SPL: 135 dB
Frequency Range: 55Hz-20KHz
Dispersion: 100° Horizontal × 15° Vertical
Crossover Frequency: 800Hz
Volume control button
Power, Signal, Limit Indicator
Cluster, HF, High curving, Indoor control
1 Channel Balanced COMBO TRS/XLR line Input
1 Channel Balanced XLR Link Output
Power Voltage: Universal AC 110V- 240V~50/60Hz
1 Power Input and 1 Power Link Output
Sutiable for parties, DJ gigs, weddings, meetings, speeches,
churches,gymnastics, conferences, home theaters, etc.
